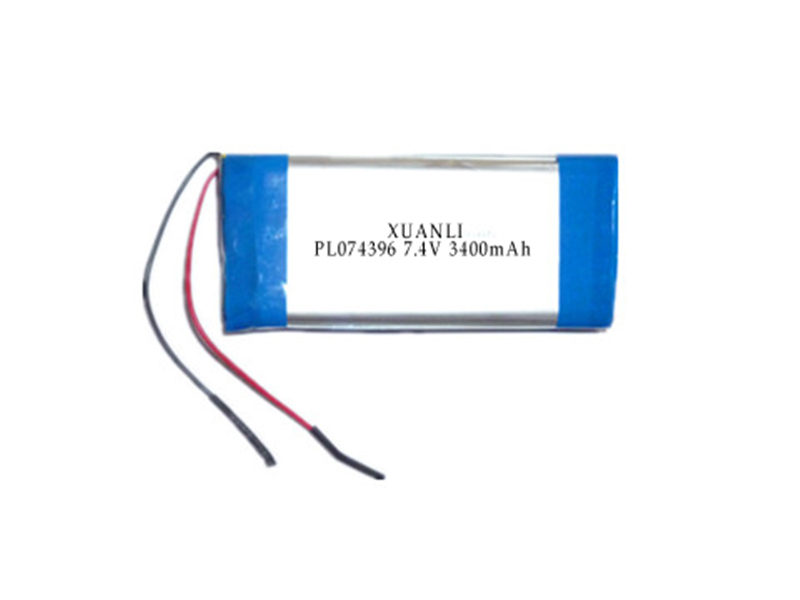

7.4V polymer lithium battery Product model: XL 7.4V 3400mAh
7.4V polymer lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 074396
· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 7.4V
· Single battery capacity: 3400mAh
· Battery combination: 2 strings and 1 parallel
· Battery voltage range after combination: 6.0V~8.4V
· Battery capacity after combination: 3400mAh
· Battery pack power: 25.16W
· Battery pack size: 14*44*99mm
· Maximum discharge current: <3.4A
· Instantaneous discharge current: 6.8A~10.2A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
7.4V polymer lithium battery
· Comply with relevant national standards and requirements for batteries
· All finished battery products have been calibrated and tested before leaving the factory. They can be used directly and normally
